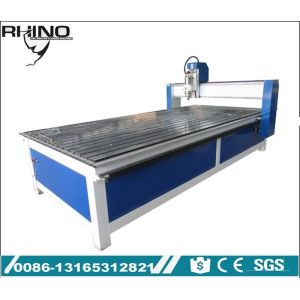

5.5kw water cooling spindle 1530 cnc carving machine with Mach3
system
Machine description
1. The Rhino R-1530 wood cnc router is with strong function, engraving and milling, drilling, cutting, side milling, chamfering
edge etc.
2. Water cooling 5.5kw spindle, XYZ three axis adopted leadshine
stepper motor drivers,orignal Mach3 control system with separate cotnrol box
3. Application industry:arts,crafts,door,espencially for cutting MDF,acrylic ,PVC Board
4. This is our economic type large working size cnc router for
woodworking
R-1530 wood cnc router machine features
1. The max traveling speed can reach more than 30 meters/minute,the
max cutting speed can reach 25 meters/minute.
2. World famous Mach3 ETHERNET system make the operation more
convenient no need USB cable
3. We also offer you more than 1000 peices design more human
nature.
4. Y axis adopts double motor driver make sure working more stable and
long life time use no change
5. Equip high power 5.5kW water cooling spindle motor, lower noise
than air cooling spindle.It is mainly applicable in the manufacture
of furnitures and the wooden doors
Applicable industries
1. Woodworking : solid wood, density board, furniture, wooden doors, wardrobe
doors, cabinet doors, multi-head woodworking furniture carving
machine. Cutting, line carving, punching, relief, etc.
2. Advertising sign: wood board, PP board, PE board, epoxy board, acrylic, dichroic
board, high-light mini-character engraving etc.
3. Musical Instrument : Euclidean Guitar Handle Material Engraving,Instrument
fingerboard engraving; Bess electric guitar handle material
engraving, Bess electric guitar body engraving, instrument
polishing etc.
4. Stone carving: jade, tombstone, ceramic tile marble background wall, mesa
cutting/punching; stone handicraft sculpture relief, etc.
Other Rhino CNC Router machine we make
1. Metal engraving machine: aluminium plate cutting, copper plate cutting, copper-aluminium
door relief, hollow relief,stainless steel working
2. Large mold engraving machine: foam mold carving, PE,EVA mold carving, steel sculpture, wood mold
carving, plastic mold carving, car,boat,bathroom gypsum mold
carving.
3. Four axis CNC Router machine: Jade carving; wood 3D carving; foam 3D/4D engraving, gypsum
engraving, metal three-dimensional carving etc.
4. CNC center: woodworking cnc center, stone table processing cnc center,
five-axis cnc center etc.
R-1530 main specifications
MOQ: 1 set Payment: T/T---30% in advance, 70% balance before machine delivery Packaging: free-fumigation wooden case Delivery: 3-5 working days after getting the deposit Warranty: Two year |
| Model | R-1530 |
| Working size | 1500*3000*200mm |
| Table size | 1580*3550mm |
| Body structure | Steel structure |
| Working table | T-SLOT |
| Working accuracy | ±0.05mm |
| Repositioning accuracy | ±0.05mm |
| Traveling speed | 40m/min |
| Working speed | 25m/min |
| spindle | 5.5KW water /air cooling spindle |
| Spindle rotary speed | 0-24000rpm |
| Control system | DSP A11E |
| Drive and motor | stepper motor drivers |
| Transmission mode | Gear wheel for XY axis Original HIWIN square rail, TBI 25mm ball
screw for Z axis HIWIN square rail |
| Working voltage | AC380V/60HZ&50hz 3phase |
| Command language | G-code,*u00,*mmg,*plt |
| Software | Artcam |
| Cutters | 10 pieces with diameter of 6 and 12.7 |
| Machine operation manual | Included |
| Dust collector | without |
| Oiling system | manually oiling |
| Machine weight | 1600kg |
| Guide rail | 20 Square rail ( Taiwan HIWIN) |
| Packaging Measure | 180cm*220cm*180cm |
| Optional parts | 1. Air location jack 8 sets 2. Water cooling spindle 3.2kw-9kw 3. Servo motor and drivers Yaskawa brand 4. Spray system 5. NK105 handle 6. Dust collector double bags 7. Water slot around of table for metal working 8. Delta inverter |
R-1530 cnc router machine accessories
Our machine strong plywood package
Gallery
FAQ
Q1: What is production time of R-1530 CNC Router machine?
A1.We have good production capacity so this machine only need 2-3
working days then we can delivery
Q2: I knew nothing about this machine, what kind of machine i
should choose?
A2: Just tell us what material you want to do by using CNC machine,
then let us give you perfect solutions and suggestions.
Q3: Who can help me transport the machine?
A3: We can arrange the shippment for you. Just tell us which port
is near to you, so that we can check the exactly freight fee and
shipping time for you.
Q4: How about your payment terms?
A4: You can transfer 30% or 50% advance payment to us, we start to
make the machine for you, and when the machine finish, we will show
video or photo to you, you pay the balance payment to us, here we
arrange the shippment for you.
Q5: When I got this machine, but I don’t know how to use it. What
should I do?
A5: We will send video and English manual with the machine. If you
still have some doubts, we can talk by telephone or skype and
e-mail.
Q6: If some problems happen to this machine during warranty period,
what should I do?
A6: We will supply free parts during machine warranty period if
machine have some problems. While we also supply free life long
after-sales service. So any doubts, just let us know, we will give
you solutions.
